1000W Pure Sine Wave Power Inverter w/ Smartphone App Control

SN-1000BT

*Product Link: https://www.dc-ac.com/product/sn-series/sn-1000bt

*SN-BT Series Datasheet: https://www.dc-ac.com/files/datasheets/sn-bt-series.pdf

*SN-BT Digital Brochure: https://www.dc-ac.com/files/brochures/sn-bt.pdf

Bluetooth Connectability
Smart Display & USB Quick Charge 3.0
Settings Fully Adjustable by App
Pure Sine Wave Output
Microcontroller Integrated
Energy Saving Mode & Intelligent Fan Control
Input & Output Fully Isolation
Intelligent PWM Output Regulation
Multi Pre-Alarm & Shutdown Alarm Protections: Battery Type Detection / Polarity Reverse / Low Voltage Short Circuit / Overheat / Overload
Aluminum Housing
100% Made in Taiwan

Specification:

System
Continuous Power	1000W
Surge Power	2000W
Output Voltage	110/120/127 VAC; 220/230/240 VAC^{(Adjustable by App)}
Output Waveform	Pure Sine Wave
Total Harmonic Distortion	< 3%
Output USB Port	QC3.0 x 2
Standby Current (Normal Mode)	DC 12V: < 1.0A; DC 24V: < 0.8A
Standby Current (Saving Mode)	DC 12V: < 0.15A; DC 24V: < 0.15A
Output Regulation	< ±5% Intelligent PWM
Output Frequency	50/60 Hz switchable ^{(Adjustable by App)}
Input Voltage	DC 12V: 10~15V; DC 24V: 20~30V
Input Voltage Auto-Switch	-
Efficiency	> 85%
Protection
Input Type Auto-Detection	YES
Input Polarity Reverse Protection	Fuse
Input Low Voltage Protection	DC 12V: < 10.5V Pre-Alarm, < 10V Shutdown & Alarm; DC 24V: < 21.0V Pre-Alarm, < 20V Shutdown & Alarm^{(Adjustable by App)}
Output Short Circuit Protection	YES
Output Overheat Protection	> 60°C Pre-Alarm, > 65°C Shutdown & Alarm^{(Adjustable by App)}
Output Overload Protection	> 1500W Pre-Alarm, > 1600W Shutdown & Alarm ^{(Adjustable by App)}
Cooling	Intelligent Fan ^{(Adjustable by App)}
Mechanical
Fuse	DC 12V: 25A x 6PCS; DC 24V: 20A x 6PCS
AC Outlets	EU: 2; USA: 3 (GFCI optional)
Dimension (L x W x H)	360 x 227 x 88 mm
Net Weight	3.6 kg

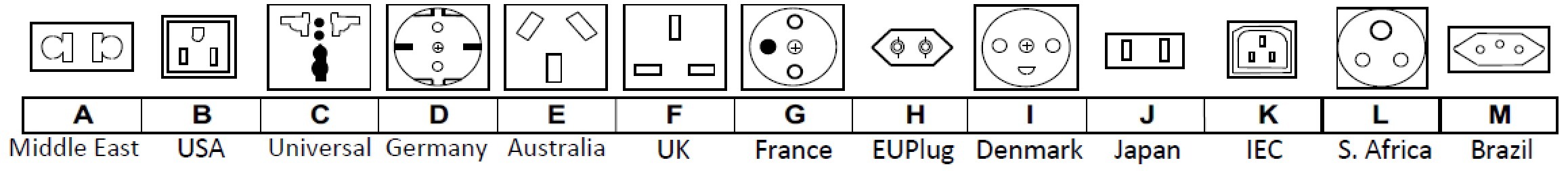

Output Sockets:

Available Output Sockets for Power Inverters and Battery Chargers

Description:

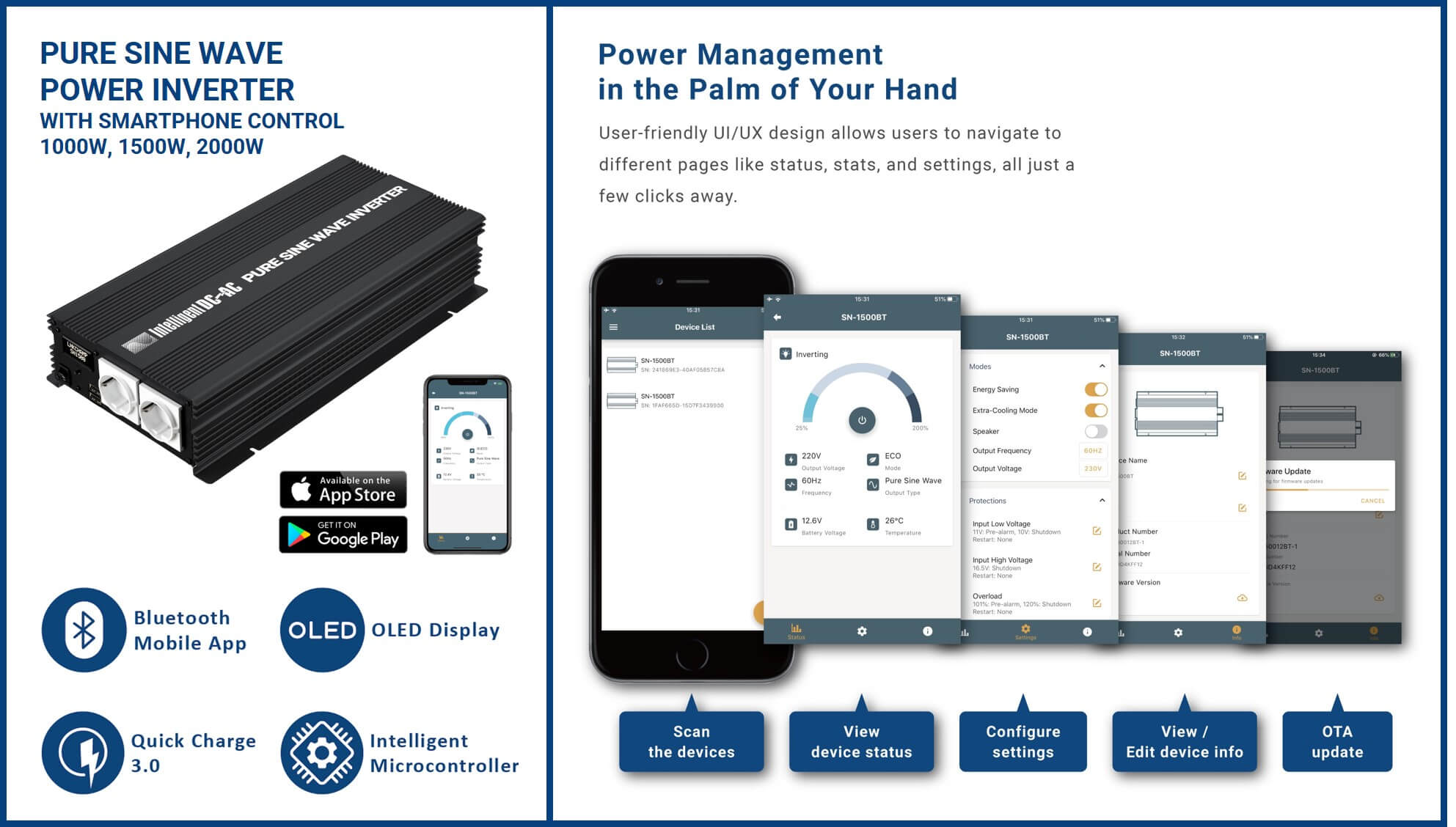

LinkChamp’s SN-BT Series - Bluetooth Pure Sine Wave Power Inverter is our Flagship product that works with our free iOS/Android app, equips with an OLED display and QC3.0 USB. With high-efficiency output ranging from 1000W~3000W and minimalistic aesthetic design, we provide our very best to the end-users.

With the integration of our Bluetooth pure sine wave power inverter and the smartphone app, the SN-BT series is providing all the possible hardware configurations for users to explore. It opens up a new door for personalizing power management. And with the OTA firmware update, we ensure the user can always get the latest feature and stability that we provide.

Company Overview:

LinkChamp Co., Ltd. is a professional OEM/ODM Taiwanese manufacturer that has more than 31 years of experience specializing in DC-AC Power Inverter, Bluetooth Power Inverter, DC-DC Converter, Battery Charger, Solar Inverter, and Solar Charge Controller.

We are the only manufacturer in the industry that provides the full range of microcontroller integrated power inverters - Intelligent DC-AC® series. With our microcontroller embedded, we provide the most flexible programming customization to our clients that stands out in the industry.

Awards:

2022. Automechanika FRANKFURT. Innovation Award Nominee.

2022-2023 TEEMA Taiwan Outstanding SME.

2021-2022 TEEMA Taiwan Outstanding SME.

Please note that the specifications provided for this product are subject to change without notice. The information provided may be outdated or incomplete, and the actual product may differ from what is described. We recommend that you always check our official website for the most up-to-date information on this product's specifications.
